Epoxy coating for high-temperature exposure environments
EPICON HR
Enhanced heat resistance while maintaining the anti-corrosive performance and workability of epoxy coating!
EPICON HR is ideal for high-temperature areas in marine environments, but also electric power facilities, plant facilities, and a range of industries. With the innovative performance of EPICON HR, areas that usually require expensive non-ferrous metal parts can be replaced to “steel + coating.”
Product features
EPICON HR is a heat-resistant epoxy coating developed for the external surfaces of steam piping and other high-temperature exposure environments, withstanding sustained temperatures of up to 200°C.

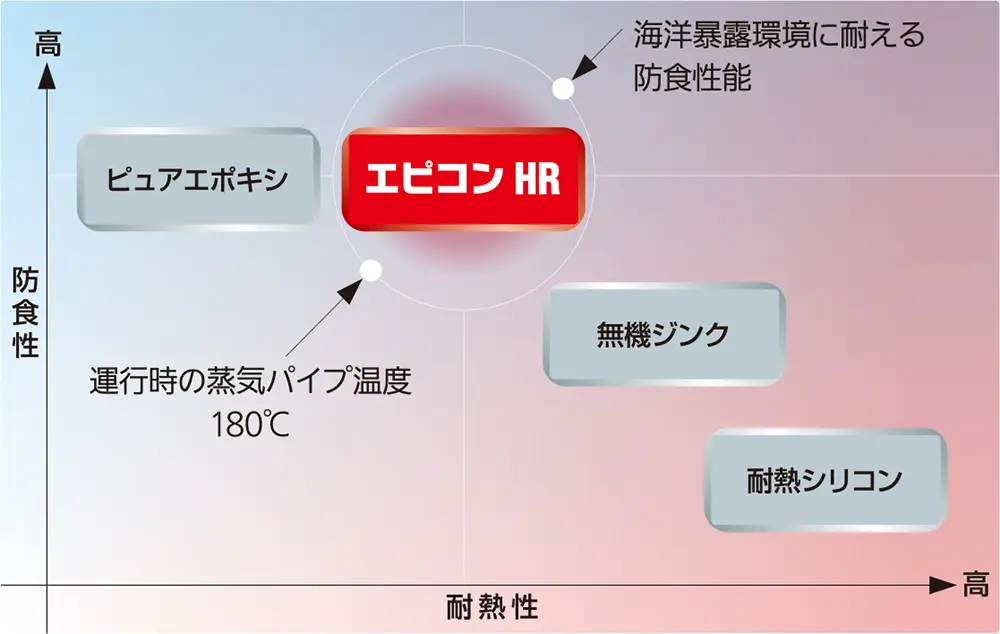

EPICON HR combines the excellent anti-corrosive performance of epoxy coatings with heat resistance, protecting high-temperature exposure components that are often prone to rusting and helping reduce maintenance requirements.

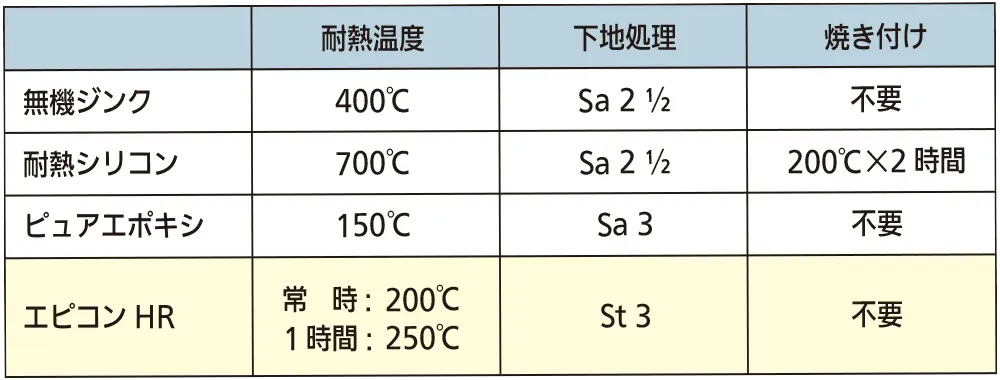

Compared to inorganic zinc and heat-resistant silicone coatings, applying EPICON HR is also less labor-intensive, requiring less surface preparation and eliminating the baking process needed to cure heat-resistant silicone coatings.
Excellent heat resistance up to 200°C and anti-corrosive performance
Excellent adherence to steel and many non-ferrous metals
Excellent workability, compatible with power tool cleaning
Cures without a baking process
The secret to heat resistance

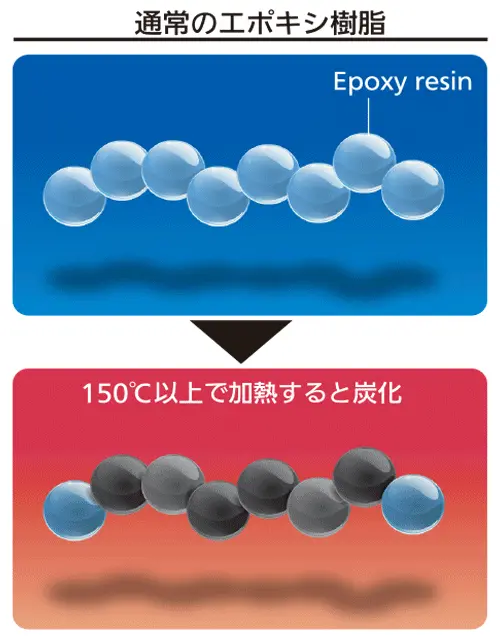

Epoxy polymer used for anti-corrosive coatings normally starts to carbonize when heated above 150°C.

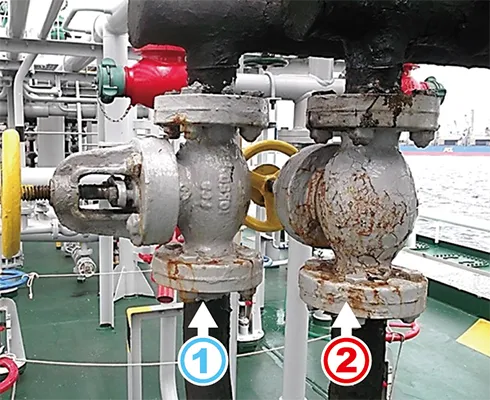

When a pure epoxy coating is applied to a high-temperature exposure components

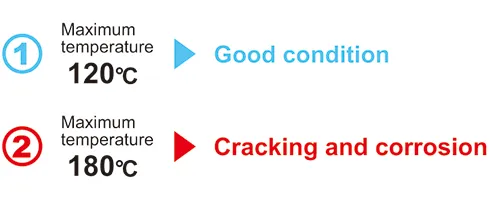

1 year and 5 months after application
Maximum service temperature of a pure epoxy coating
150℃
Utilizing our unique polymer technology, EPICON HR features a coating structure that resists carbonization at temperatures up to 200°C.

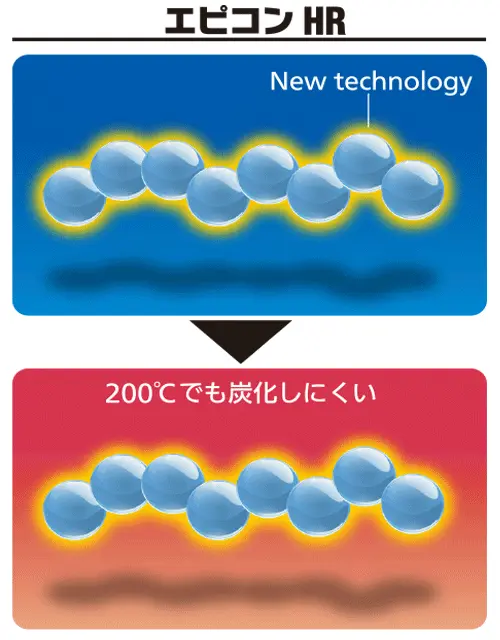

EPICON HR heat resistant technology (conceptual illustration)

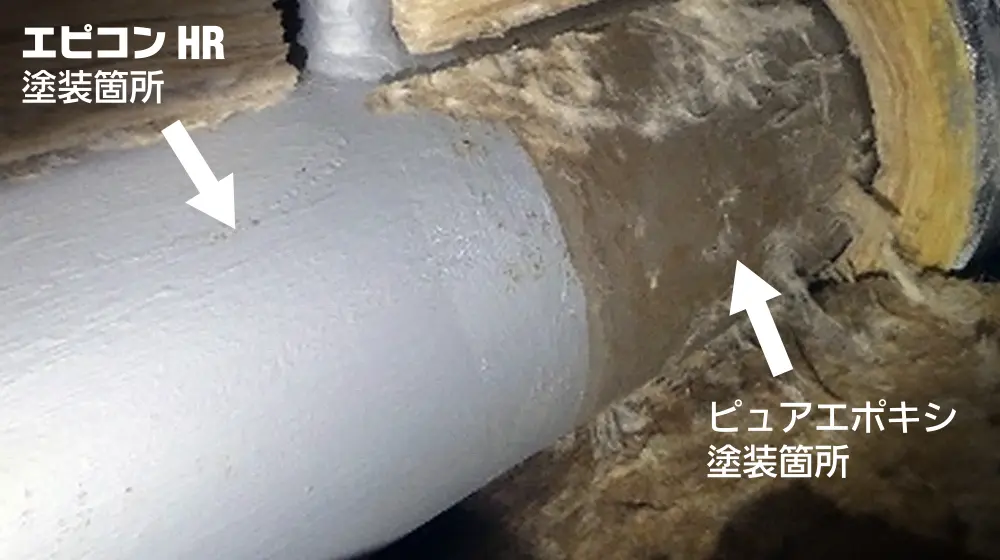

Application example (heat transfer line on ship cargo tank, operating temperature: 170°C, one year after application)
For a part normally left unpainted and wrapped in insulation, the client wanted a solution to address rust inside the insulation. A comparative test of EPICON HR and a pure epoxy coating was performed.
The photograph shows the test area one year after application. The area coated with a pure epoxy coating is discolored due to carbonization, while the area coated with EPICON HR remains in good condition.
Application example of EPICON HR
